2023 GEPRC CineLog35 V2 Analog 6S with Caddx Ratel2 Camera GPS 3.5 Inch FPV Drone TBS Nano RX, ELRS 2.4G Receiver F722-45 AIO
$691.41 – $841.05
Description
- Video Capture Resolution: Other
- Operator Skill Level: Beginner,Intermediate,Expert
- Indoor/Outdoor Use: Indoor-Outdoor
- Camera Mount Type: Fixed Camera Mount
- Controller Mode: MODE1,MODE2
- Model Number: Cinelog35 V2 Analog
- Certification: CE
- Flight Time: 5- 8 minutes
- Controller Battery: No
- Control Channels: 8 Channels
- Motor: Brushless Motor
- Warranty: 3 month
- Warning: Batteries not included
- Plugs Type: XT60
- Charging Voltage: 14.8V
- Dimensions: 3.5-inch
- Power Source: Electric
- Charging Time: 30 minutes
- Remote Distance: 100M
- Remote Control: Yes
- Type: HELICOPTER
- Aerial Photography: No
- Package Includes: Original Box
- Material: Carbon Fiber,Plastic,Metal
- State of Assembly: Ready-to-Go
- Features: App-Controlled
- Brand Name: Auloda
- Origin: Mainland China
- Recommend Age: 14+y

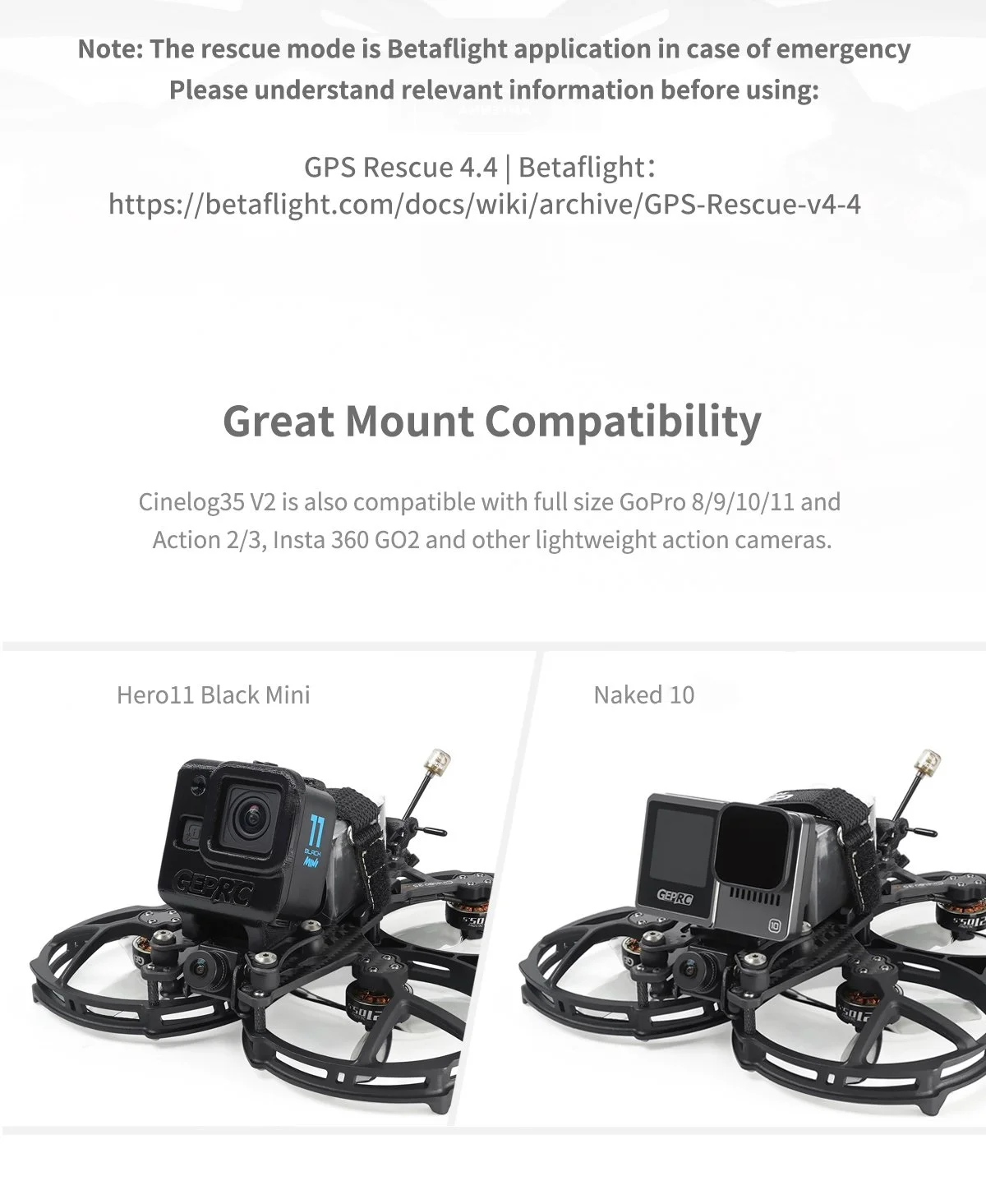

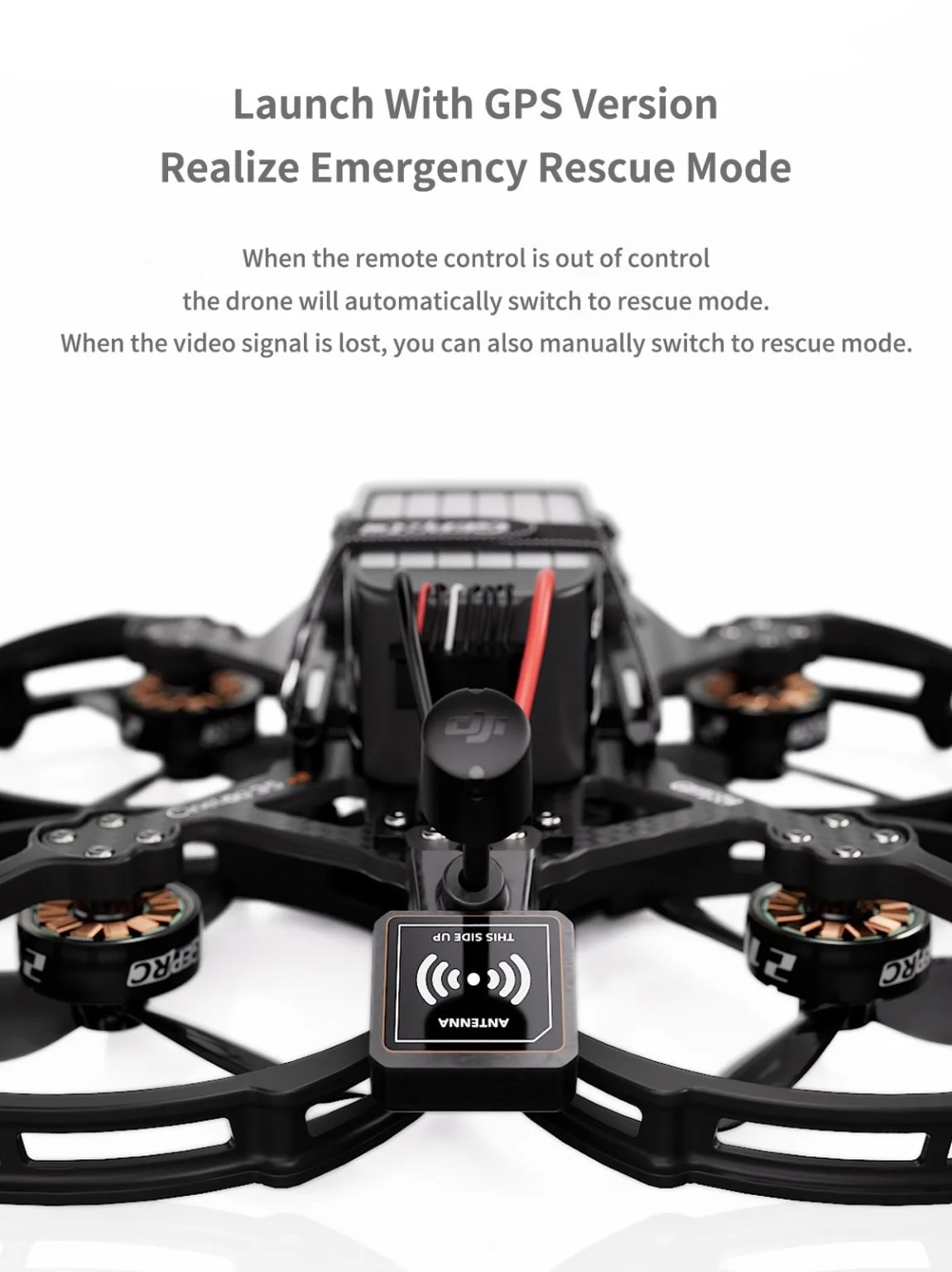

Tips: GPS Rescue 4.4 | Betaflight：https://betaflight.com/docs/wiki/archive/GPS-Rescue-v4-4
Summary
Gathering the experience and evolution of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.
CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.
The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading.
Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.
This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors. The user’s satisfied voice is the motivation for us to move forward.
Changelog
May 8, 2023: CineLog35 V2 motor changed from SPEEDX2 2105.5-2150KV(6S) to SPEEDX2 2105.5-2650KV(6S).
Feature

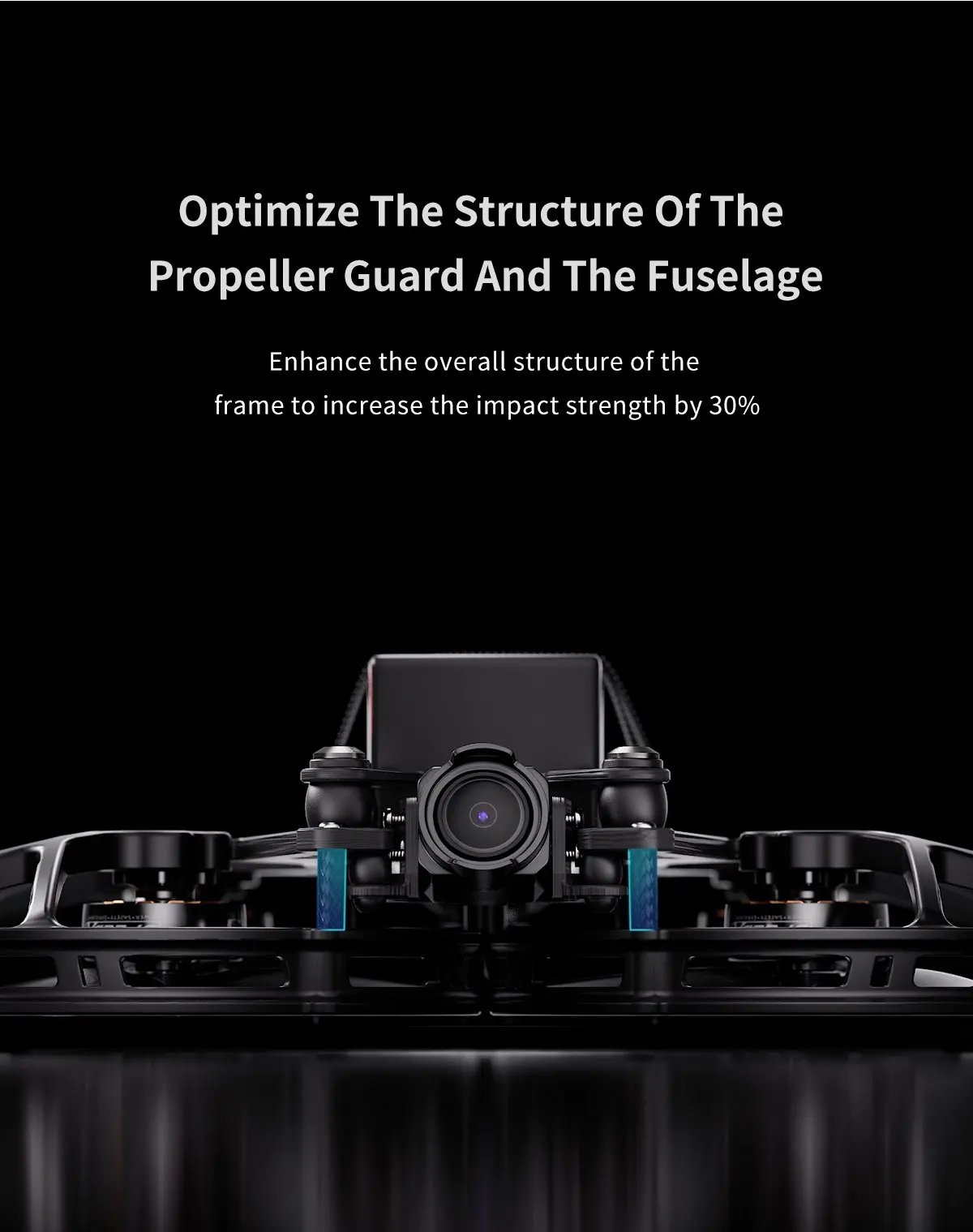

New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
Adopts the GEP F722-45A AIO V2 high performance flight controller.

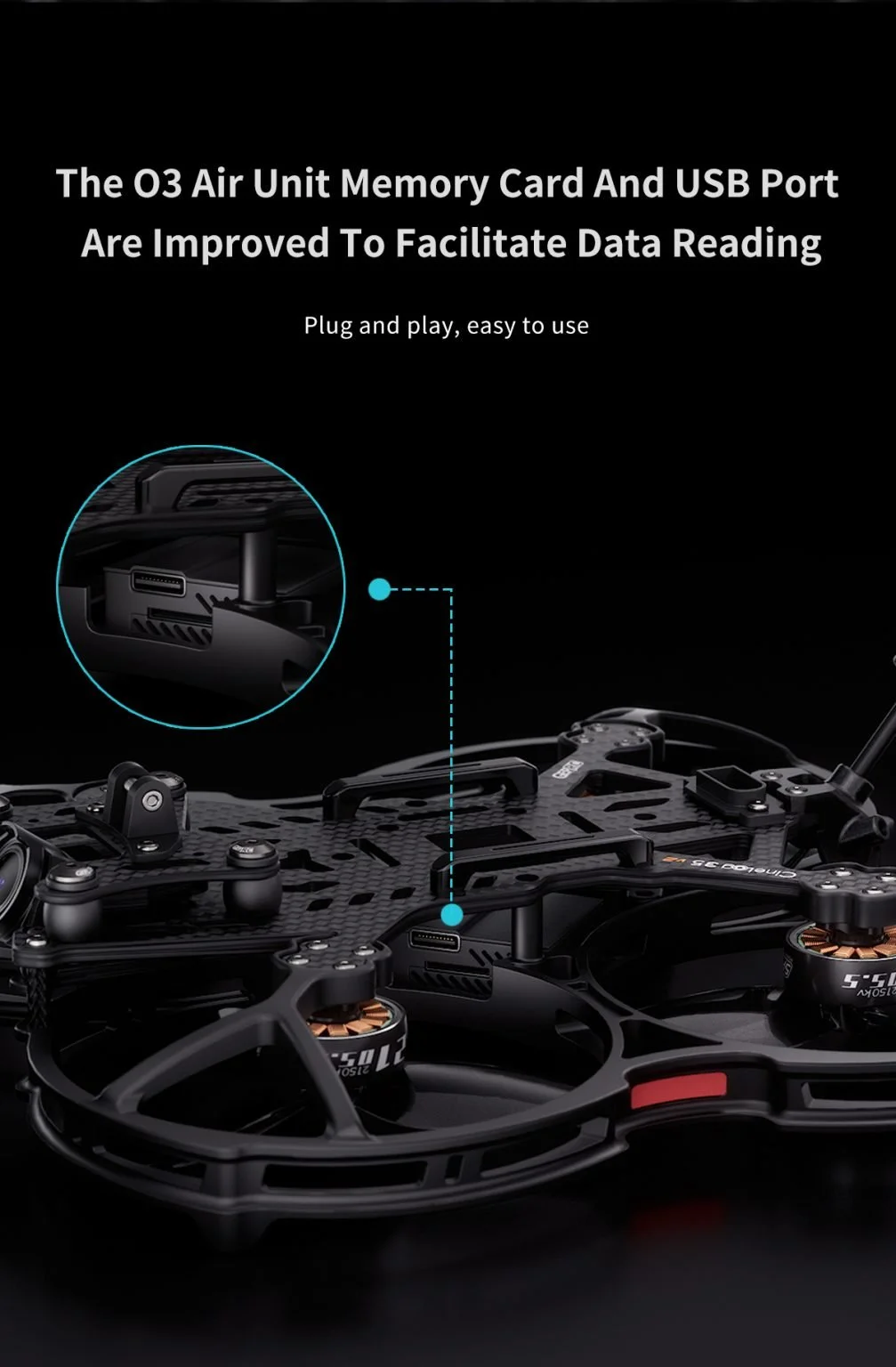

Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading

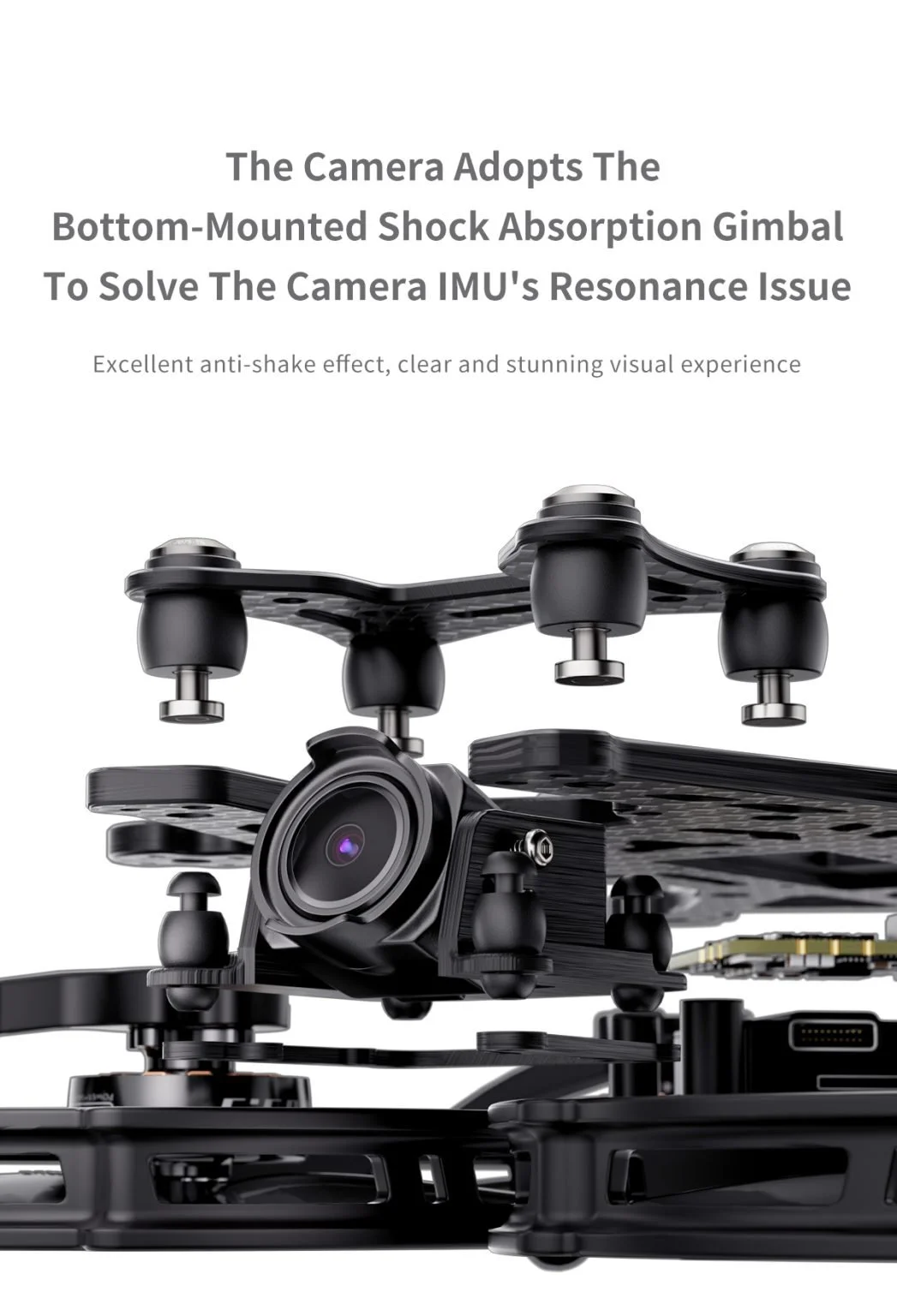

For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.

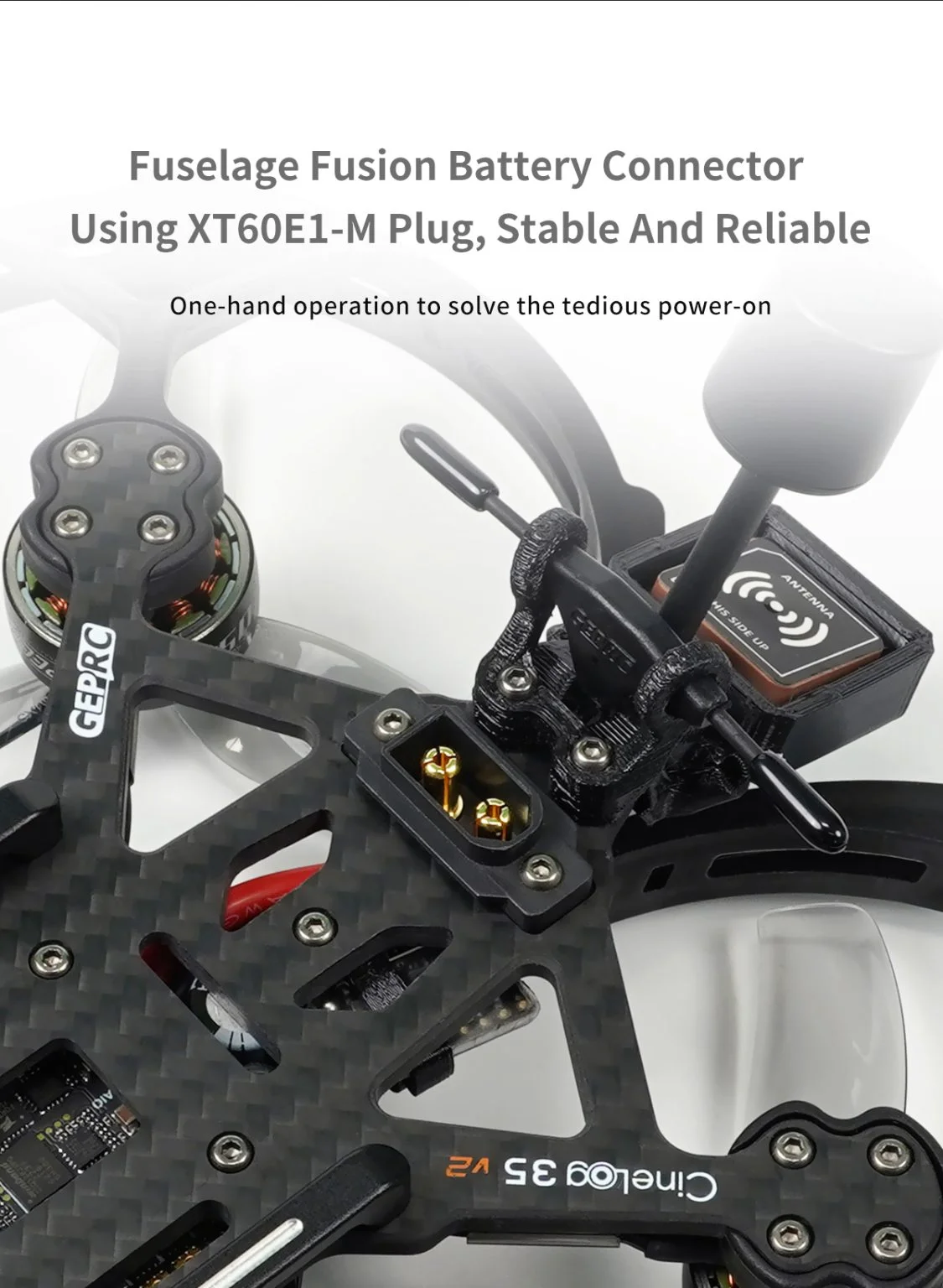

Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

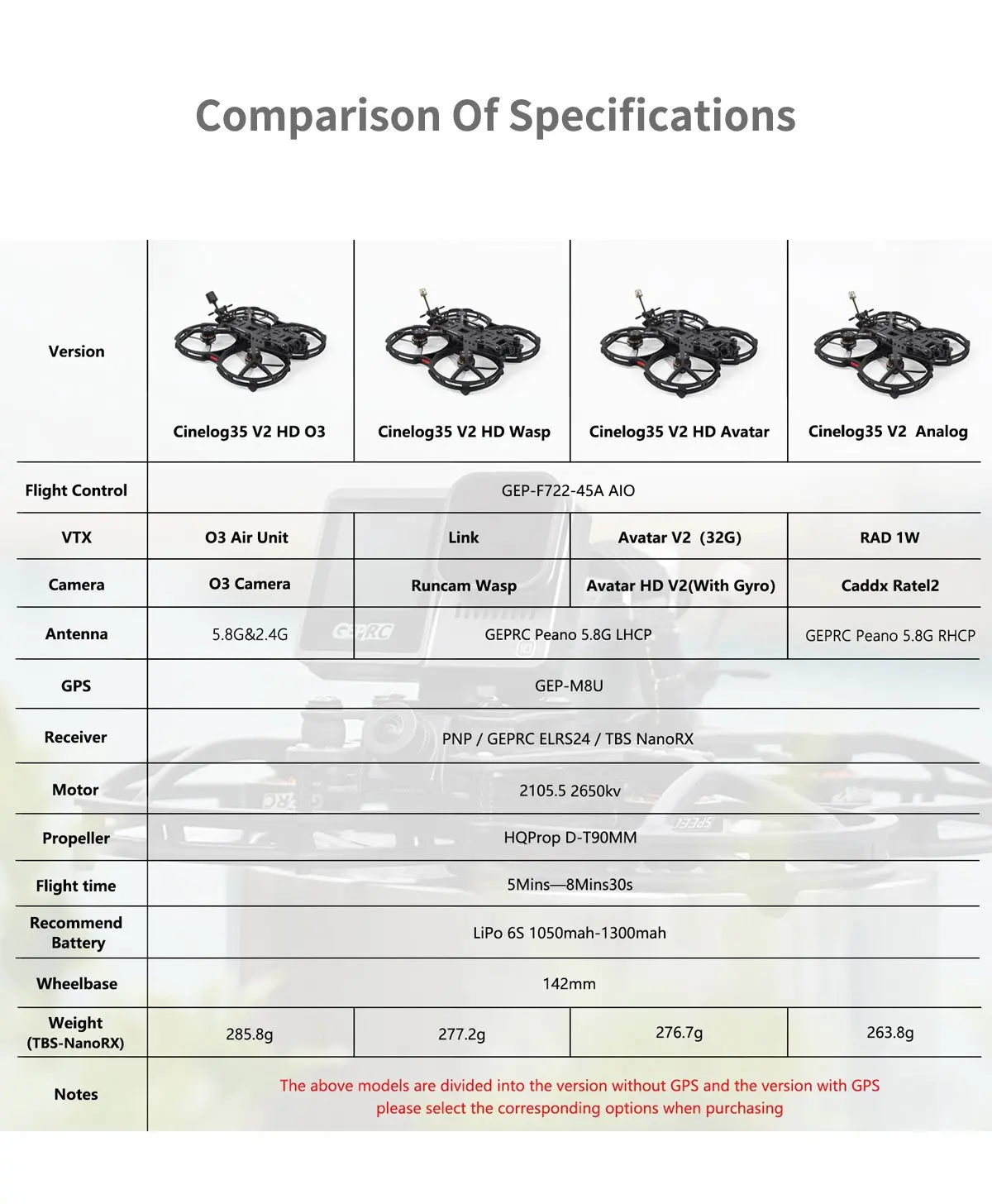

Specifications
Model: Cinelog35 V2 Analog
Frame:GEP-CL35 V2

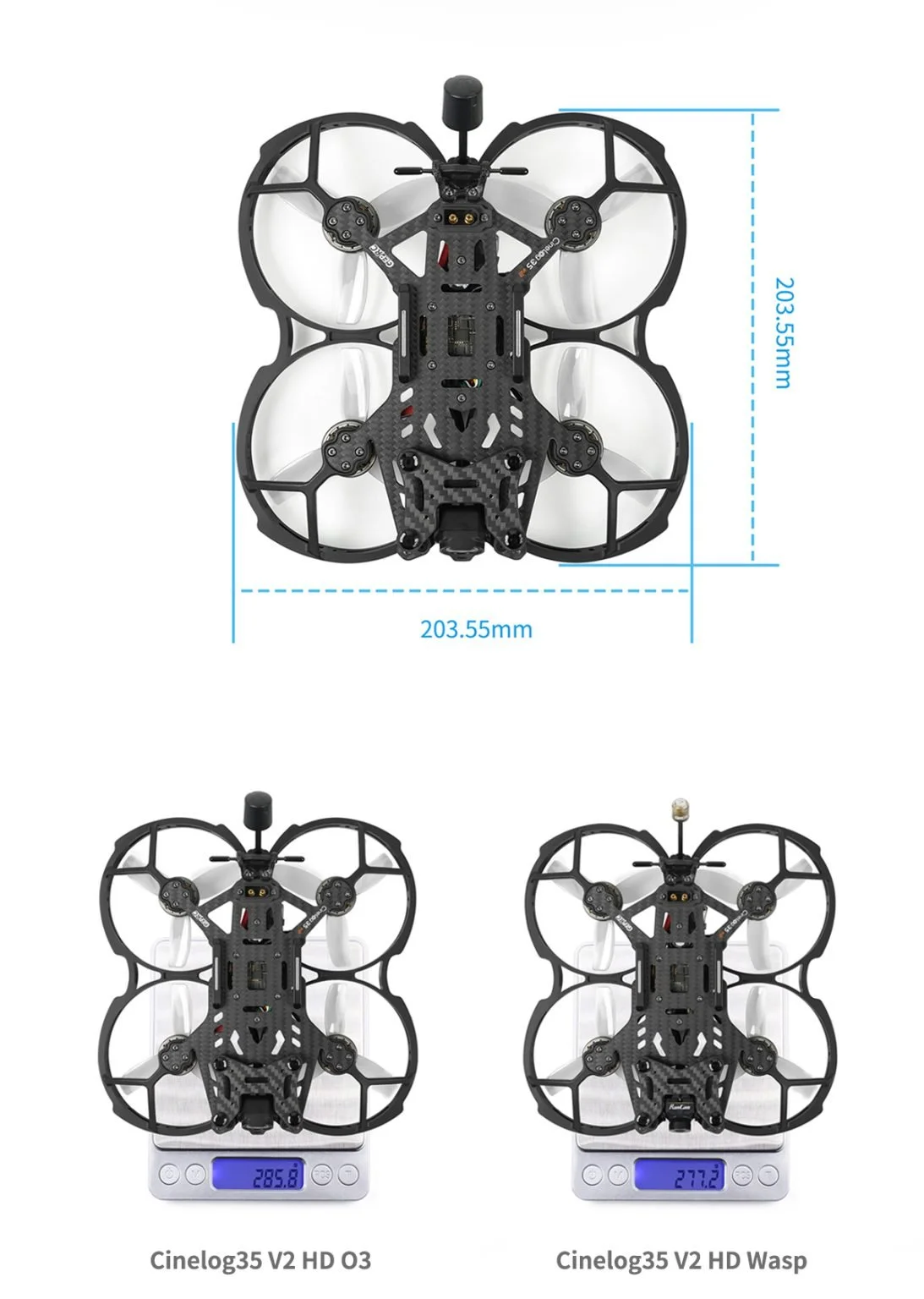

Wheelbase: 142mm
Gimbal Plate: 2.0mm
Top Plate: 3.5mm
Bottom Plate: 1.5mm
FC system: GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 45A
VTX: GEPRC RAD 1W(UFL)
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8 RHCP UFL
Motor: SPEEDX2 2105.5-2650KV (6S)
Propeller: HQProp D-T90MM
GPS（optional）:GEP-M10

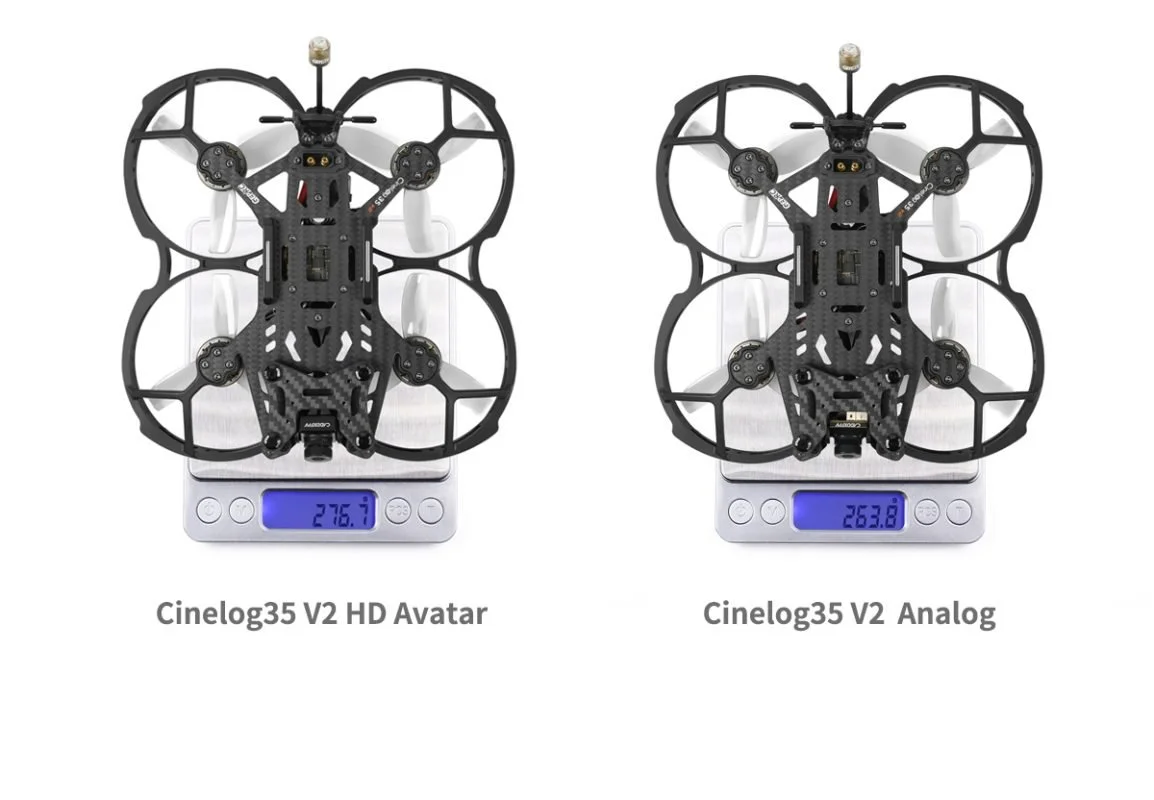

CineLog35 V2 Analog TBSNanoRX weight: 263.8g
Receiver: PNP, GEPRC ELRS2.4G, TBS Nano RX
Recommended battery: 6S LiPo 1050mah-1300mah
Flight time: 5′00″ -8′ 30″
Related Products:
GEPRC Cinelog35 V2 Accessories
Lipo Battery Explosion-proof Safe Bag
Suitable Glasses: GEPRC FPV VRG1 Glasses
The remote control depends on the receiver model you choose
PNP Version(suitable for DJI remote 2)
ELRS 2.4g Version (remote control for ELRS 2.4G)
TBS (suitable for TBS RX remote control)
Includes
1 x CineLog35 V2 Analog(battery not included)
2 x HQProp D-T90MM（2 pairs）
2x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x plastic tweezers
1 x Antenna fixed tube (pair)
1 x Keychain
1 x GP Camera Mounting Base
1 x Naked GP Camera Mounting Base
1 x Antenna Mounting Base
Screw package includes:
2x cup head screws M2*18
2x round head screws with pad M2*5.5
1x round head screws M2*12
2x Rivet nut M2
4x round head screws M2*8
4x round head screws M2*7
4x round head screws M2*6
2x round head screws M2.5*6
2x hexagonal screw M1.6*8
1x Flange nuts M5
2x Press Rivet Nuts_Brass color M2*1.9-OD4.9
2x Iron nut M2
2x Iron nut M2
2x Camera gimbal shock absorbing rubber
